Altec | AIR
Refrigerant and Desiccant Air Dryers
Altec AIR is dedicated to being your one stop resource for all of your Compressed Air Drying requirements. Whether your need is for Drying Industrial Compressed Air, the Distribution of Dry Air to Pressurized Telecom Cables or Antenna / Waveguide Systems, or Drying & Purification of Compressed Air for Laboratory applications, Altec AIR has the solution.
Non-Cycling Refrigerated Air Dryers
RAD Series
Altec AIR’s RAD Series Non-Cycling Refrigerated Air Dryers are designed to meet the demand of your compressed air system with quality components that are built to last.
-
Available Input Voltages*
115 VAC, 1 Phase, 60Hz
208-230 VAC, 1 Phase, 60Hz
230 VAC, 3 Phase, 60Hz
460 VAC, 3 Phase, 60Hz
575 VAC, 3 Phase, 60Hz - Drain Port - 1/4" NPT
- Maximum Pressure - 232 PSIG
- Maximum Inlet Temperature - 140°F / 60°C
High Inlet Temperature Refrigerated Air Dryers
RHT Series
Altec AIR’s RHT Series High Inlet Temperature Refrigerated Air Dryers are designed to be used with tank mounted pistontype air compressors that have no after-coolers.
-
Available Input Voltages*
115 VAC, 1 Phase, 60Hz
208-230 VAC, 1 Phase, 60Hz
230 VAC, 3 Phase, 60Hz
460 VAC, 3 Phase, 60Hz
575 VAC, 3 Phase, 60Hz - Drain Port - 1/4" NPT
- Maximum Pressure - 232 PSIG
- Maximum Inlet Temperature - 200°F / 93°C
MDH Series Desiccant
Air Dryers
Altec AIR’s RHT Series High Inlet Temperature Refrigerated Air Dryers are designed to be used with tank mounted pistontype air compressors that have no after-coolers.
-
Standard Outlet Dew Point
-40° F/C Pressure Dew Point (PDP) -
Available Input Voltages
120 VACM
240 VAC
12 VDC
24 VDC - Maximum Pressure - 120 PSIG
- Maximum Inlet Temperature - 120°F / 49°C
VSA Series Desiccant
Air Dryers
The VSA Series Heatless Desiccant Air Dryers are one of our longest running, mature product lines. Its proven design continues to provide solid performance and reliability at point-of-use applications.
-
Standard Outlet Dew Point
-40° F/C Pressure Dew Point (PDP) -
Available Input Voltages
120 VAC
240 VAC - Maximum Pressure - 150 PSIG
- Maximum Inlet Temperature - 120°F / 49°C

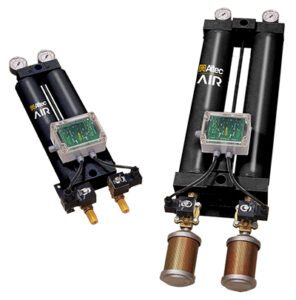

HR Series Desiccant
Air Dryers
HR Series Heatless Desiccant Air Dryers are the perfect companion to smaller horsepower compressed air systems for providing ultra-dry clean air.
-
Outlet Dew Points
-40° F/C Pressure Dew Point (PDP) - Standard
-100°F / -73°C Pressure Dew Point (PDP) - Available -
Available Input Voltages
120 VAC
240 VAC
12 VDC
24 VDC -
Maximum Pressure - 150 PSIG
*12 VDC versions of the HR5, HR6, HR6.5, HR7 have a maximum pressure of 125 PSIG - Maximum Inlet Temperature - 120°F / 49°C>
HRL Series Heatless Regenerative Desiccant
Air Dryers
Altec AIR’s HRL Series Heatless Desiccant Air Dryers are our largest capacity regenerative air dryers to meet the needs of the industrial compressed air market.
- Power Requirements - 120 VAC, 1 Phase, 60 Hz
- Maximum Pressure - 150 PSIG Standard
- Maximum Operating Temperature - 120°F / 49°C
- Tower Pressure Gauges
- OSHA Approved Mufflers
- Desiccant Fill & Drain Ports
- ASME Safety Relief Valves
- Standby Mode
- Manual Cycle Stepping
- Control Line Filter / Regulator

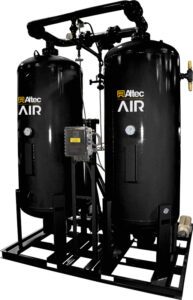

HLD Series Low Dew Point Heatless Regenerative
Desiccant Air Dryers
Altec AIR’s HLD Series Low Dew Point Heatless Desiccant Air Dryers are designed to provide -100°F / -73°C Pressure Dew Point (PDP) for a variety of industries and applications, including those in ultra-low ambient temperatures.
- Power Requirements - 120 VAC, 1 Phase, 60 Hz
- Maximum Pressure - 150 PSIG Standard
- Maximum Operating Temperature - 120°F / 49°C
- Selecable Cycles
- 3-Way Inlet Valve Reduces Number of Valves
- Hard Point Mounting for Installation Integrity
- ASME Safety Relief Valves
- Delta PSI Gauges Filters For Element Condition
- Regulated Purge (HLD-0100 & Larger)
- Independent Re-Pressurization Circuit
HOF Series Oil Field Heatless Regenerative
Desiccant Air Dryers
With their standard rugged design features, Altec AIR’s HOF Series Heatless Oil Field Air Dryers provide clean, dry compressed air, resulting in improved air system operation with unparalleled reliability and safety in an often unforgiving environment.
- Power Requirements - 120 VAC, 1 Phase, 60 Hz
- Maximum Pressure - 150-200 PSIG (Model Specific)
- Maximum Operating Temperature - 120°F / 49°C
- Selectable Cycles
- ASME Safety Relief Valves
- OSHA Approved Mufflers
- Stainless Steel Control Tubing & 316 Stainless Steel Compression Fittings
HHP Series High Pressure Heatless Regenerative
Desiccant Air Dryers
Altec AIR’s HHP Series High Pressure Heatless Desiccant Air Dryers are specially designed for higher pressure applications. They are available in three specific designs rated for maximum working pressures of 250, 500, and 1000 PSIG.
- Power Requirements - 120 VAC, 1 Phase, 60 Hz
-
Maximum Pressure -
250 PSIG (HHP-0250-0025 - HHP-0250-1000)
500 PSIG (HHP-0500-0050 - HHP-0500-1400)
1000 PSIG (HHP-1000-0075 - HHP-1000-1800)
- Maximum Operating Temperature - 120°F / 49°C
- ASME / CRN Approved Safety Relief Valves
HRE Series Dual Tower Heat Regenerative Desiccant
Air Dryers
Altec AIR’s HRE Series Heat Regenerative Desiccant Air Dryers apply a regulated amount of dried process air, which has been heated by way of a low watt density heater, down through the desiccant bed (counter current). This heated purge air is then exhausted to atmosphere, removing the water vapor that had adhered to the desiccant during the previous cycle.
-
Power Requirements (model specific) -
120 VAC, 1 Phase, 60 Hz
230 VAC, 1 Phase, 60 Hz
460 VAC, 3 Phase, 60 Hz
- Maximum Pressure - 150 PSIG Standard
- Maximum Operating Temperature - 120°F / 49°C
- Tower Pressure Gauges & Dew Point Indicators
- Welded Frame Base - Easy Move With Forklift
- OSHA Approved Mufflers
- Desiccant Fill & Drain Ports
- ASME Safety Relief Valves
HBP Series Dual Tower Heat Regenerative Desiccant
Air Dryers
Altec AIR’s HBP Series Heat Regenerative Desiccant Air Dryers also use heated air to regenerate the off-line tower. Additionally, a high-efficiency packaged blower assembly directs heated atmospheric air counter current through the desiccant bed, removing the water vapor collected from the previous drying cycle. Dew point spikes or heat bumps are mitigated by enabling the auxiliary cooling / stripping feature that uses a small percentage of dry process air (1.7%)
-
Power Requirements (model specific) -
120 VAC, 1 Phase, 60 Hz
230 VAC, 1 Phase, 60 Hz
460 VAC, 3 Phase, 60 Hz
- Maximum Pressure - 150 PSIG Standard
- Maximum Operating Temperature - 120°F / 49°C
- Tower Pressure Gauges & Dew Point Indicators
- Welded Frame Base - Easy Move With Forklift
- OSHA Approved Mufflers
- Desiccant Fill & Drain Ports
- ASME Safety Relief Valves
HBS Series Single Tower Heat Regenerative
Air Dryers
The HBS Series Single Tower Heat Regenerative Desiccant Air Dryers cost less to operate than a refrigerated air dryer, while providing higher quality air. All HBS Series Dryers are provided with factory installed Pre and After-Filters, resulting in a true all-in-one package. With only three moving parts and a rugged construction, their simplicity will impress and perform beyond your expectations.
-
Power Requirements (model specific) -
120 VAC, 1 Phase, 60 Hz
230 VAC, 1 Phase, 60 Hz
460 VAC, 3 Phase, 60 Hz
-
Maximum Pressure (model specific) -
150 PSIG
200 PSIG -
Packaged Filters -
Oil Removal to 99.9% @ 0.3 to 0.6 Microns
Particle Removal to 99.9% @ 1 Micron - 3-Way Electric Ball Valves
- Low Watt Density Heater
- Industrial Duty Blower
- Simple Maintenance
